Mean Well LED driver series XBG-240

LED drivers in a round shaped metal case (IP67) with a control line for dimming, a wide input range, 240W and a constant power. These SELV compliant devices are protected against short circuit, overload (auto re...

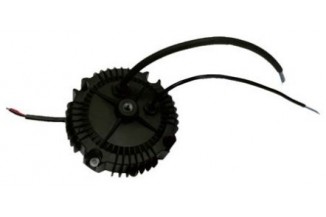

Mean Well LED driver series XBG-240

LED drivers in a round shaped metal case (IP67) with a control line for dimming, a wide input range, 240W and a constant power. These SELV compliant devices are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. They have a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) as well as a built-in active PFC function, are suitable for LED lighting applications and have a built-in potentiometer for adjusting the output power. We offer the following types of this Mean Well series: XBG-240-AB and XBG-240-AB-C.

  • single output
  • output: 240W
  • input voltage: 100 to 305V AC (47 to 63Hz)
  • maximal input inrush current: 65A
  • maximal leakage current: <0,75mA
  • withstand votlage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • weight: 1920g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    XBG-240-AB, Mean Well LED switching power supplies, 240W, constant power, IP67, dimmable, XBG-240 series
    56,79 €
    137204 XBG-240-AB XBG-240-AB
    56,79 €
    Quantity Unit price
    50 + 55,59 €
    Stock: 3
  • Mean Well
    XBG-240-AB-C, Mean Well LED drivers, 240W, IP67, constant power, dimmable, adjustable, circular housing, XBG-240 series
    50,49 €
    244866 XBG-240-AB-C XBG-240-AB-C
    50,49 €
    Stock: 0
Showing 1 - 2 of 2 products
