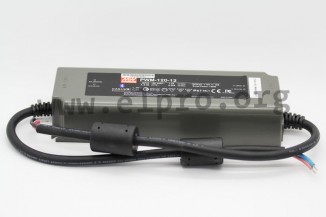

Mean Well LED driver series PWM-120BLE

LED drivers in a plastic housing (IP67) with a universal input, a PWM output voltage, protection class II, a 3 in 1 dimming function (0 to 10V DC, 10V PWM, potentiometer) and 120W. These devices are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. They have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. We offer the following types of this Mean Well series: PWM-120-12BLE and PWM-120-24BLE.

single output
output: 120W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
no-load power: <0,5W
maximal input inrush current: 60A
withstand voltage I/P-O/P: 3750V AC
operating temperature: -40 to +90°C
dimensions: 191x63x37,5mm
weight: 970g
