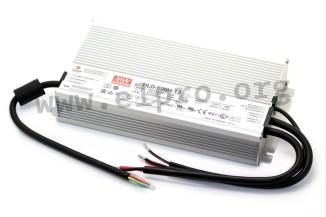

Mean Well LED driver series HLG-600H

LED drivers in a metal case (IP67) with a constant current/constant voltage, a wide input range, 600W and a typical lifetime of more than 62.000 hours. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are suitable for LED lighting applications. They are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-600H-12, HLG-600H-15, HLG-600H-20, HLG-600H-24, HLG-600H-30, HLG-600H-36, HLG-600H-42, HLG-600H-48 and HLG-600H-54.

single output
output: 480 to 604,8W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 70A
maximal leakage current: <0,75mA
overcurrent protection: 95 to 108%
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +90°C
weight: 3900g
