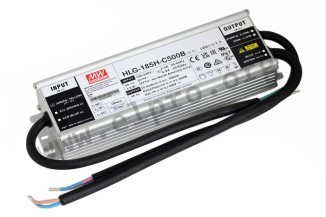

Mean Well LED driver series HLG-185H-C

LED drivers in a metal case (IP67) with a constant current, a high voltage output, 200W and a wide input range. These devices comply with EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547, are suitable for LED lighting applications and have a built-in active PFC function. They are protected against short circuit, overload (auto recovery), overvoltage and overtemperature and have a 3 in 1 dimming function (1 to 10V DC, 10V PWM). We offer the following types of this Mean Well series: HLG-185H-C500B, HLG-185H-C700B, HLG-185H-C1050B and HLG-185H-C1400B.

single output
output: 199,5 to 200,2W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 55A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +90°C
weight: 1150g
