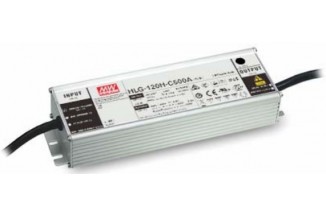

Mean Well LED driver series HLG-120H-C

LED drivers in a metal case (IP65) with a constant current, a wide input range, 150W and a built-in active PFC function. These devices are protected against overload (auto recovery), overvoltage, overtemperat...

Mean Well LED driver series HLG-120H-C

LED drivers in a metal case (IP65) with a constant current, a wide input range, 150W and a built-in active PFC function. These devices are protected against overload (auto recovery), overvoltage, overtemperature, as well as short circuit and comply with EN55015. They are suitable for LED lightning applications, have a 3 in 1 dimming function (1 to 10V DC, 10V PWM) and a built-in potentiometer for adjusting the output current. We offer the following types of this Mean Well series: HLG-120H-C350AB, HLG-120H-C500AB, HLG-120H-C700AB, HLG-120H-C1050AB and HLG-120H-C1400AB.

  • single output
  • output: 150 to 155,4W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • maximal leakage current: <0,75mA
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • weight: 1040g
> More
Data Sheet
