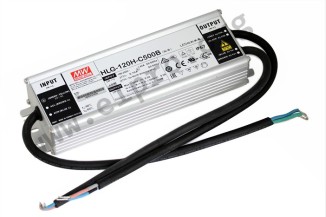

Mean Well LED driver series HLG-120H-C

LED drivers in a metal case (IP67) with a constant current, 150W and a high voltage output. These devices comply with EN55015 and are suitable for LED lighting applications. They are protected against short circuit, overload (auto recovery), overvoltage and overtemperature and comply with a 3 in 1 dimming function (adjustable 1 to 10V DC, 10V PWM) as well as a built-in active PFC function. We offer the following types of this Mean Well series: HLG-120H-C350B, HLG-120H-C500B, HLG-120H-C700V, HLG-120H-C1050B and HLG-120H-C1400B.

single output
output: 150,5 to 155,4W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 50A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +90°C
weight: 1040g
