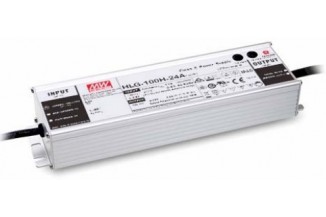

Mean Well LED driver series HLG-100H

LED drivers in a metal case (IP67) with a constant current/constant voltage (CC+CV), 96W and a wide input range. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are protected against short circuit, overload, overvoltage as well as overtemperature. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-100H-20, HLG-100H-24, HLG-100H-30, HLG-100H-36, HLG-100H-42, HLG-100H-48 and HLG-100H-54.

single output
output: 95,4 to 96W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 60A
overcurrent protection: 95 to 106%
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +80°C
weight: 1120g
