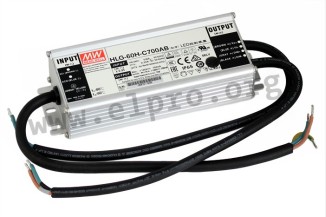

Mean Well LED driver series HLG-60H-C

LED drivers in an aluminium case (IP65) with a 3 in 1 dimming function (adjustable output voltage 1 to 10V DC, 10V PWM), a constant current, a high voltage output and universal input. These devices are protected against short circuit, overload (auto recovery) and overvoltage and comply with EN55015 as well as EN61000-3-2 class C. They have a built-in potentiometer for adjusting the output current as well as a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-60H-C350AB and HLG-60H-C700AB.

single output
output: 70W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 60A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +80°C
weight: 730g
