Mean Well power supply series UHP-500R

Switching power supplies in an enclosed U-bracket housing with 500W, a low profile (31mm), an LED indicator for power on, a peak load capability of 150% (100ms), a redundant function and a DC OK signal. These...

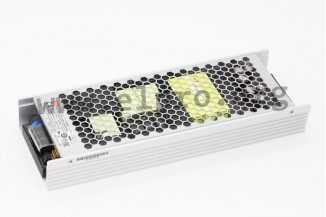

Mean Well power supply series UHP-500R

Switching power supplies in an enclosed U-bracket housing with 500W, a low profile (31mm), an LED indicator for power on, a peak load capability of 150% (100ms), a redundant function and a DC OK signal. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a fanless design, are suitable for an operating altitude of up to 5000m and comply with UL/EN62368-1, EN55032 class B as well as EN60335-1 (except for UHP-500R-55). We offer the following types of this Mean Well series: UHP-500R-5, UHP-500R-12, UHP-500R-24, UHP-500R-36, UHP-500R-48 and UHP-500R-55.

  • single output
  • output: 400 to 501,6W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <0,75mA
  • overload protection: 110 to 140%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -20 to +70°C
  • weight: 905g
> More
Data Sheet
Showing 1 - 8 of 8 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    UHP-500R-4.2, Mean Well switching power supplies, 500W, redundant function, enclosed, UHP-500 series
    94,79 €
    244460 UHP-500R-4.2 UHP-500R-4.2
    94,79 €

    More
    Stock: 0
  • Mean Well
    UHP-500R-5, Mean Well switching power supplies, 500W, redundant function, enclosed, UHP-500 series
    90,89 €
    123945 UHP-500R-5 UHP-500R-5
    90,89 €
    Quantity Unit price
    50 + 87,79 €

    More
    Stock: 13
  • Mean Well
    UHP-500R-12, Mean Well switching power supplies, 500W, redundant function, enclosed, UHP-500 series
    84,89 €
    123946 UHP-500R-12 UHP-500R-12
    84,89 €
    Quantity Unit price
    50 + 83,09 €

    More
    Stock: 12
  • Mean Well
    UHP-500R-15, Mean Well switching power supplies, 500W, redundant function, enclosed, UHP-500 series
    84,69 €
    244461 UHP-500R-15 UHP-500R-15
    84,69 €

    More
    Stock: 0
  • Mean Well
    UHP-500R-24, Mean Well switching power supplies, 500W, redundant function, enclosed, UHP-500 series
    81,09 €
    123947 UHP-500R-24 UHP-500R-24
    81,09 €
    Quantity Unit price
    50 + 78,39 €

    More
    Stock: 46
  • Mean Well
    UHP-500R-36, Mean Well switching power supplies, 500W, redundant function, enclosed, UHP-500 series
    81,09 €
    123948 UHP-500R-36 UHP-500R-36
    81,09 €
    Quantity Unit price
    50 + 78,39 €

    More
    Stock: 49
  • Mean Well
    UHP-500R-48, Mean Well switching power supplies, 500W, redundant function, enclosed, UHP-500 series
    81,09 €
    123949 UHP-500R-48 UHP-500R-48
    81,09 €
    Quantity Unit price
    50 + 78,39 €

    More
    Stock: 53
  • Mean Well
    UHP-500R-55, Mean Well switching power supplies, 500W, redundant function, enclosed, UHP-500 series
    84,89 €
    235202 UHP-500R-55 UHP-500R-55
    84,89 €
    Quantity Unit price
    50 + 83,09 €

    More
    Stock: 3
Showing 1 - 8 of 8 products
