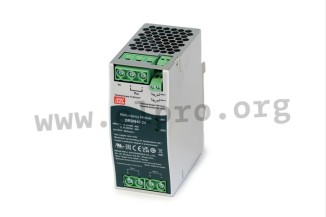

Mean Well redundancy module series DRDN40

Redundancy modules in an enclosed housing (55mm width) with 40A, a 1 channel output, a 2 channel input, an LED indicator and a DC OK / alarm relay contact. These devices are suitable for 1+1 as well as N+1 redundancy systems and are protected against overload as well as short circuit. They are suitable for direct DIN rail mounting and comply with UL62368-1, EN55032 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: DRDN40-12, DRDN40-24 and DRDN40-48.

single output
input voltage: 12 to 48V
number of inputs: 2
input current: 0 to 20A x2 input / 0 to 40A x1 input
maximal output peak current: 60A
output voltage drop: 0,3V
input voltage alarm DRDN40-12: <8,5V / >14,7V (±5%)
input voltage alarm DRDN40-24: <18V / >31V (±5%)
input voltage alarm DRDN40-48: <34,2V / >63V (±5%)
maximal relay output: 30V DC / 1A
operating temperature: -40 to +85°C
weight: 500g
