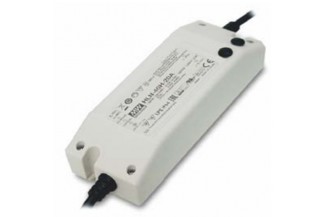

Mean Well LED driver series HLN-40H

LED drivers in a plastic housing (IP64) with a constant current, 40W and a universal input. These devices are protected against short circuit, overcurrent, overvoltage as well as overtemperature and comply with E...

Mean Well LED driver series HLN-40H

LED drivers in a plastic housing (IP64) with a constant current, 40W and a universal input. These devices are protected against short circuit, overcurrent, overvoltage as well as overtemperature and comply with EN61347-1, EN61347-2-12, EN61000-3-2 class C as well as EN55015. They are suitable for LED lightning applications and have a built-in active PFC function. The output current is adjustable through a 3 in 1 dimming function (1 to 10V DC, PWM signal, potentiometer). We offer the type HLN-40H-24B of this Mean Well series.

  • single output
  • output: 40,1W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +50°C
  • weight: 350g
> More
Data Sheet
Showing 1 - 1 of 1 product
  • Product Stock Unit price Volume discounts
  • Mean Well
    HLN-40H-24B, Mean Well LED switching power supplies, 40W, IP64, dimmable, HLN-40H series
    34,59 €
    123873 HLN-40H-24B HLN-40H-24B
    34,59 €
    Quantity Unit price
    50 + 33,49 €

    More
    Stock: 11
