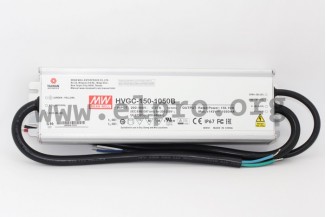

Mean Well LED driver series HVGC-150

LED drivers in a metal housing (IP67) with a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), 150W and a constant current. These devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 Class C, EN61000-3-3 as well as EN61547 and are suitable for LED lighting applications. They have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. We offer the following types of this Mean Well series: HVGC-150-350B, HVGC-150-500B, HVGC-150-700B, HVGC-150-1050B and HVGC-150-1400B.

single output
output: 149,8 to 150,5W
input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
maximal input inrush current: 35A/480V
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +85°C
dimensions: 245x68x38,8mm
weight: 1240g
