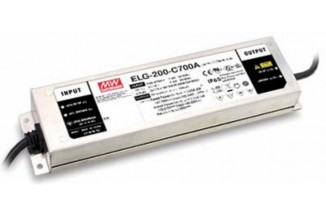

Mean Well LED driver series ELG-200-C

LED drivers in a metal case (IP65) with a 6kV surge immunity level, a protective earth conductor (PE), a wide input range and a constant current. These SELV compliant devices are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They are protected against short circuit, overtemperature, overload (auto recovery) as well as overvoltage and have a built-in active PFC function. The output current is adjustable through a potentiometer on the bottom side of the case. We offer the following types of this Mean Well series: ELG-200-C700A-3Y, ELG-200-C1050A-3Y, ELG-200-C1400A-3Y, ELG-200-C1750A-3Y and ELG-200-C2100A-3Y.

single output
output: 199,5 to 201,6W
input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
maximal input inrush current: 65A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +85°C
weight: 1220g
