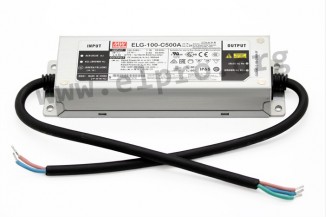

Mean Well LED driver series ELG-100-C

LED drivers in a metal housing (IP65) with a constant current, 100W and a protective earth conductor PE. These SELV compliant devices are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as 6kV surge immunity level. They are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and have a built-in potentiometer for adjusting the current limitation as well as a built-in active PFC function. We offer the following types of this Mean Well series: ELG-100-C350A-3Y, ELG-100-C500A-3Y, ELG-100-C700A-3Y, ELG-100-C1050A-3Y and ELG-100-C1400A-3Y.

single output
output: 99,75 to 100,8W
input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
maximal input inrush current: 40A
no-load power: <0,5W
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +90°C
dimensions: 199x63x35,5mm
weight: 850g
