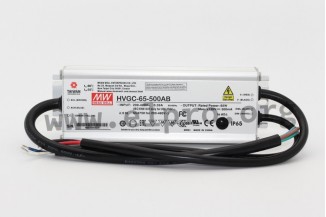

Mean Well LED driver series HVGC-65_AB

LED drivers in an aluminium case (IP65) with a constant current, a high output voltage, a built-in active PFC function and a wide input range. These devices are protected against short circuit, overload (auto recovery) as well as overvoltage and comply with EN61347-1, EN55015 and EN61000-3-2 class C. They have a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) with a control line and are suitable for LED lighting applications. Their output current is adjustable through a built-in potentiometer. We offer the following types of this Mean Well series: HVGC-65-350AB, HVGC-65-500AB, HVGC-65-700AB and HVGC-65-1050AB.

single output
output: 65 to 65,1W
input voltage: 180 bis 528V AC (47 bis 63Hz), 254 bis 747V DC
maximal input inrush current: 25A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +80°C
weight: 770g
dimensions: 189x61,5x36,8mm
