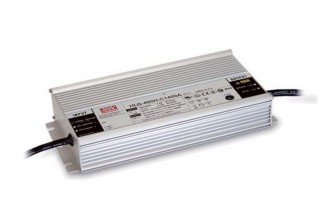

Mean Well LED driver series HLG-480H-C

LED drivers in a metal housing (IP65) with a constant current, a built-in potentiometer for adjusting the constant current and 480W. These devices are not dimmable, are suitable for LED lighting applications and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They comply with EN62384, EN61347-1, EN61000-3-2 class C as well as EN55015 and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-480H-C1400A, HLG-480H-C1750A, HLG-480H-C2100A, HLG-480H-C2800A and HLG-480H-C3500A.

single output
output: 479 to 481W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 35A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +95°C
weight: 2800g
