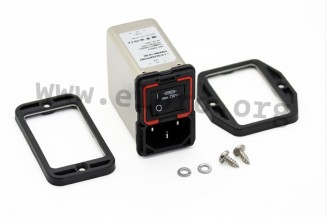

Schaffner RFI filter series FN 9280 / FN 9280B

RFI filters in a metal housing with an IEC plug, a dual fuse holder and a 2-pole rocker switch. These line filters have a faston connector (6,3x0,8mm) and are suitable for screw mounting. They have a ...

Schaffner RFI filter series FN 9280 / FN 9280B

RFI filters in a metal housing with an IEC plug, a dual fuse holder and a 2-pole rocker switch. These line filters have a faston connector (6,3x0,8mm) and are suitable for screw mounting. They have a good attenuation and comply with EN62368-1. We offer the following types of this Schaffner series: FN9280-1-06, FN9280-4-06, FN9280-6-06, FN9280-10-06, FN9280-10-100, FN9280B-1-06, FN9280B-2-06, FN9280B-4-06, FN9280B-6-06, FN9280B-10-06, and FN9280B-10-100.

  • rated current: 10A
  • dielectric strength line/ground: 2kV AC
  • dielectric strength line/neutral: 0,76kV AC
  • operating temperature: -25 to +85°C
  • FN9280B_ is suitable for application in medical settings
> More
Data Sheet
