Schurter RFI filter series DG12

2-pole RFI filters in a metal housing with an IEC plug, protection class I and a line switch. These line filters are suitable for screw mounting (front face) and have 6,3x0,8mm tab terminals. We offer the following ...

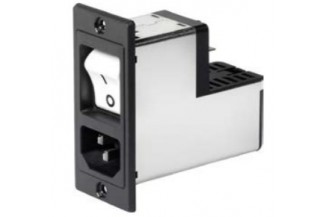

Schurter RFI filter series DG12

2-pole RFI filters in a metal housing with an IEC plug, protection class I and a line switch. These line filters are suitable for screw mounting (front face) and have 6,3x0,8mm tab terminals. We offer the following types of this Schurter series: 3-108-854, 3-109-557, 3-109-559, 3-109-560, 3-109-561, 3-109-572, 3-109-698, 3-118-974, 3-109-575, 3-108-465, 3-118-982, 3-109-573, and 3-109-558.

  • rated current: 1 to 15A
  • rated voltage: 250V AC
  • dielectric strength line/ground: >2,7kV DC
  • dielectric strength line/line: >1,7kV DC
  • operating temperature: -25 to +60°C
