Schaffner RFI filter series FN 394

Radio frequency interference filters in a metal case with a power line connector, a faston plug terminal (6.3x0.8mm), a dual fuse holder (6,3x32 or 5x20mm fuses) and a 2-pole line switch. These filters have a hig...

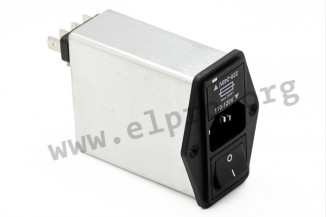

Schaffner RFI filter series FN 394

Radio frequency interference filters in a metal case with a power line connector, a faston plug terminal (6.3x0.8mm), a dual fuse holder (6,3x32 or 5x20mm fuses) and a 2-pole line switch. These filters have a high conducted attenuation performance and can be screw mounted from the front or rear side. We offer the following types of this Schaffner series: FN394-1-05-11, FN394-2.5-05-11, FN394-6-05-11, FN394E-1-05-11, FN394E-2.5-05-11 and FN394E-6-05-11.

  • maximal continuous operating voltage: 250V AC (50/60Hz)
  • dielectric strength line to ground (2sec): 2kV AC
  • dielectric strength line to neutral (2sec): 0,76kV AC
  • temperature range: -25 to +85°C
  • rocker switch ratings: 10A (4A), 250V AC
  • inrush current: 51A
  • FN394E_: with earth line choke
