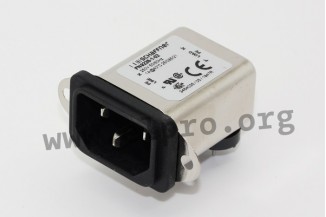

Schaffner RFI filter series FN 9226 / FN 9226B

RFI filters in a metal housing (IP40) with an IEC plug and screw terminals. These line filters have 6,3x0,8mm faston terminals (FN9226_-06) resp. THT pins (FN9226_-02) and a good attenuation. We offer...

Schaffner RFI filter series FN 9226 / FN 9226B

RFI filters in a metal housing (IP40) with an IEC plug and screw terminals. These line filters have 6,3x0,8mm faston terminals (FN9226_-06) resp. THT pins (FN9226_-02) and a good attenuation. We offer the following types of this Schaffner series: FN9226-1-02, FN9226-1-06, FN9226-3-02, FN9226-3-06, FN9226-6-02, EN9226-6-06, FN9226-10-02, FN9226-10-06, FN9226B-1-02, FN9226B-3-02, FN9226B-6-02, FN9226B-6-06, and FN9226B-10-02.

  • rated current: 1 to 10A
  • maximal continuous operating voltage: 250V AC (50/60Hz)
  • dielectric strength lin/ground: 2kV AC
  • dielectric strength line/neutral: 0,76kV AC
  • operating temperature: -25 to +85°C
  • FN9226B is suitable for application in medical settings
