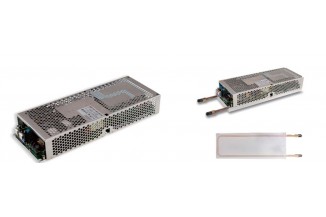

Mean Well power supply series PHP-3500

Switching power supplies in an enclosed housing with 3500W, a low profile (1U/60mm), a built-in remote ON/OFF control, a universal input, a PMBus interface and a water cooling system. These devices have a bui...

Mean Well power supply series PHP-3500

Switching power supplies in an enclosed housing with 3500W, a low profile (1U/60mm), a built-in remote ON/OFF control, a universal input, a PMBus interface and a water cooling system. These devices have a built-in active PFC function and are protected against overload, overvoltage, overtemperature as well as short circuit. They are suitable for an active current sharing of up to 14.000W (3+1 units) and comply with EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the types PHP-3500-24 and PHP-3500-48 of this Mean Well series as well as the matching cooling plate HS-656.

  • single output
  • output: 3480 to 3504W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 80A
  • leakage current: <2mA
  • overload protection: 105 to 115%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -40 to +85°C
  • dimensions: 380x141,4x60mm
  • weight: 4500g
> More
Data Sheet
Showing 1 - 3 of 3 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    PHP-3500-24, Mean Well switching power supplies, 3500W, U-bracket, PMBus, PFC, PHP-3500 series
    892,99 €
    114311 PHP-3500-24 PHP-3500-24
    892,99 €

    More
    Stock: 3
  • Mean Well
    PHP-3500-48, Mean Well switching power supplies, 3500W, U-bracket, PMBus, PFC, PHP-3500 series
    892,99 €
    114312 PHP-3500-48 PHP-3500-48
    892,99 €

    More
    Stock: 8
  • Mean Well
    HS-656, Mean Well switching power supplies, 3500W, U-bracket, PMBus, PFC, PHP-3500 series
    149,29 €
    114310 HS-656 HS-656
    149,29 €
    Quantity Unit price
    50 + 144,29 €

    More
    Stock: 6
Showing 1 - 3 of 3 products
