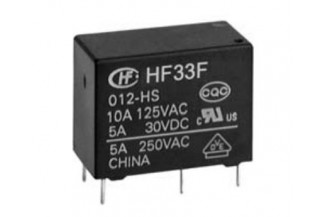

Hongfa PCB relay series HF33F

Subminiature intermediate power relays with the contact configuration SPST-NO (1 form A) and the contact material AgNi. These relays have a maximal switching current of 10A, a maximal switching voltage of 30V DC resp....

Hongfa PCB relay series HF33F

Subminiature intermediate power relays with the contact configuration SPST-NO (1 form A) and the contact material AgNi. These relays have a maximal switching current of 10A, a maximal switching voltage of 30V DC resp. 250V AC and a high sensitivity through a coil rated power of 200mW. Furthermore, they are in compliance with the UL insulation system class F. We offer the type HF33F/012-HSL3F with 12V coil voltage and the type HF33F/024-HSL3F with 24V coil voltage.

  • maximal switching power: 1250VA/150W
  • minimal insulation resistance: 1000MOhm
  • testing voltage Coil/Contact (1 Min.): 4000V AC
  • testing voltage open Contact (1Min.): 1000V AC
  • minimal mechanical lifetime: 5x106 operations
  • minimal electrical lifetime: 1x105 operations
  • operating temperature: -40 to +70°C
  • weight: 7g
> More
Data Sheet
