Hongfa PCB relay series HF32FA

Subminiature intermediate power relays with the contact configuration SPST-NO and the contact material AgNi. These relays have a switching current of 5A, a maximal switching voltage of 30V DC resp. 250V AC and a high...

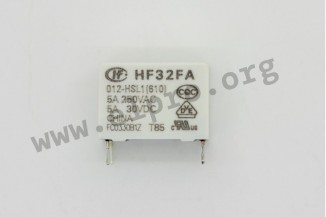

Hongfa PCB relay series HF32FA

Subminiature intermediate power relays with the contact configuration SPST-NO and the contact material AgNi. These relays have a switching current of 5A, a maximal switching voltage of 30V DC resp. 250V AC and a high sensitivity through a coil rated power of 200mW. Furthermore, they are in compliance with VDE 0700 and VDE 0631 as well with the UL insulation system class F and class B. We offer the type HF32FA/012-HSL1 with 12V coil voltage and the type HF32FA/024-HSL1 with 24V coil voltage.

  • maximal switching power: 1250VA/150W
  • minimal insulation resistance: 1000MOhm
  • testing voltage Coil/Contact (1 Min.): 5000V AC
  • testing voltage open Contact (1Min.): 1000V AC
  • minimal mechanical lifetime: 1x106 operations
  • minimal electrical lifetime: 1x105 operations
  • operating temperature: -40 to +85°C
  • weight: 4,6g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Hongfa
    HF32FA/024-HSL1, Hongfa PCB relays, 5A, 1 normally open contact, HF32FA series
    0,784 €
    113606 HF32FA/024-HSL1 HF32FA/024-HSL1
    0,784 €

    More
    Stock: 1750
  • Hongfa
    HF32FA/012-HSL1(610), Hongfa PCB relays, 5A, 1 normally open contact, HF32FA series
    0,994 €
    113607 HF32FA/012-HSL1 HF32FA/012-HSL1(610) HF32FA/012-HSL1(610)
    0,994 €

    More
    Stock: 760
