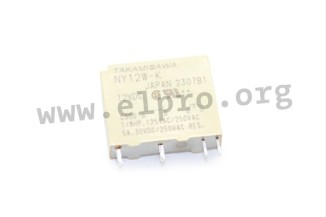

Fujitsu PCB relay series NY

PCB relays with the contact form SPST-NO (1 form A), the contact material AgPd (Au plated) and a compact housing (5mm thickness, 17,5 height). These relays have a maximal switching current of 5A and a maximal switching ...

Fujitsu PCB relay series NY

PCB relays with the contact form SPST-NO (1 form A), the contact material AgPd (Au plated) and a compact housing (5mm thickness, 17,5 height). These relays have a maximal switching current of 5A and a maximal switching voltage of 270V AC resp. 125V AC. Furthermore, they are in compliance with the standards IEC/EN61010-1 and IEC/EN61010-2-201, the housing is compliant to RTIII and therefore suitable for washing. We offer the type NY-5W-K-IE with a rated voltage of 5V, NY12W-K-IE with 12V and the type NY24W-K-IE with 24V.

  • contact: SPST-NO (bifurcated)
  • contact material: AgPd (Au plated)
  • rated current: 5A
  • maximal switching voltage: 270V AC / 125V DC
  • maximal switching power: 750VA / 90W
  • operate resp. release time: 10 resp. 5ms
  • testing voltage coil/contact:(1min.): 3000V AC
  • testing voltage open contacs(1min.): 750V AC
  • minimal mechanical lifetime: 20x106 operations
  • minimal electrical lifetime: 50x103 operations
  • operating temperature: -40 to +90°C
> More
Data Sheet
Showing 1 - 3 of 3 products
  • Product Stock Unit price Volume discounts
  • Fujitsu
    NY-5W-K-IE, Fujitsu PCB relays, 5A, 1 normally open contact, NY series
    1,65 €
    156053 NY-5W-K-IE NY-5W-K-IE
    1,65 €

    More
    Stock: 530
  • Fujitsu
    NY-12W-K-IE, Fujitsu PCB relays, 5A, 1 normally open contact, NY series
    1,65 €
    113595 NY12W-K-IE NY-12W-K-IE NY-12W-K-IE
    1,65 €

    More
    Stock: 700
  • Fujitsu
    NY-24W-K-IE, Fujitsu PCB relays, 5A, 1 normally open contact, NY series
    1,65 €
    113596 NY24W-K-IE NY-24W-K-IE NY-24W-K-IE
    1,65 €

    More
    Stock: 1160
Showing 1 - 3 of 3 products
