Fujitsu/Takamisawa PCB relay series RY

Miniature PCB relays in a plastic enclosure with the contact form DPDT (2 form C) and the contact material AgPd (Au plated). These relays have low height of 12,5mm and a weight of 5g. Furthermore, they have a...

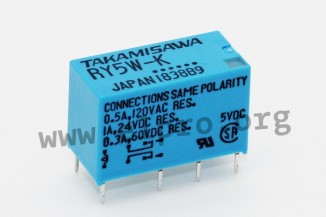

Fujitsu/Takamisawa PCB relay series RY

Miniature PCB relays in a plastic enclosure with the contact form DPDT (2 form C) and the contact material AgPd (Au plated). These relays have low height of 12,5mm and a weight of 5g. Furthermore, they have a switching current of 2A, a power output of 150 to 300mW and are wash tight (RTIII). We offer the types RY5W-K, RY12W-K and RY24W-K.

  • contact: DPDT (bifurcated)
  • contact material: AgPd, Au plated
  • rated current: 1A
  • maximal switching voltage: 120V AC / 60V DC
  • maximal switching power: 62,5VA / 24W
  • operate/release time: 6/3ms
  • testing voltage (FCC) coil/contact:(1min.): 1000V AC
  • testing voltage open contacts(1min.): 500V AC
  • minimal mechanical lifetime: 20x106 operations
  • minimal electrical lifetime: 200x103 operations (0,5A, 120V AC)
  • operating temperature: -30 to +90°C
  • weight (approximately): 5g
> More
Data Sheet
Showing 1 - 3 of 3 products
  • Product Stock Unit price Volume discounts
  • Fujitsu
    RY-5W-K, Fujitsu/Takamisawa PCB relays, 1A, DPDT, RY series
    0,504 €
    113592 RY5W-K RY-5W-K RY-5W-K
    0,504 €

    More
    Stock: 451
  • Fujitsu
    RY-12W-K, Fujitsu/Takamisawa PCB relays, 1A, DPDT, RY series
    1,04 €
    113593 RY12W-K RY-12W-K RY-12W-K
    1,04 €

    More
    Stock: 1351
  • Fujitsu
    RY-24W-K, Fujitsu/Takamisawa PCB relays, 1A, DPDT, RY series
    1,04 €
    113594 RY24W-K RY-24W-K RY-24W-K
    1,04 €

    More
    Stock: 746
