> Passive elements>Resistor networks>SIL design>Bourns resistor networks, 8 pins/4 resistors, 4600X series

Manufacturers

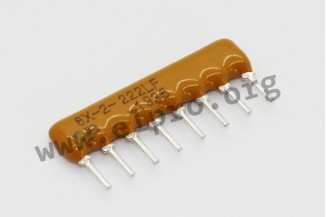

Bourns thick film resistor network series 4600X

  • 8 pins
  • 4 resistors
  • power rating: 0,3W
  • pitch: 2,54mm
  • tolerance: ±2%
  • contacts: Sn/Ag/Cu-plated
  • working voltage Umax.: 100V
  • temperature range: -55 to +125°C
  • insulation resistance: 10000MOhm
  • dielectric w...

Bourns thick film resistor network series 4600X

  • 8 pins
  • 4 resistors
  • power rating: 0,3W
  • pitch: 2,54mm
  • tolerance: ±2%
  • contacts: Sn/Ag/Cu-plated
  • working voltage Umax.: 100V
  • temperature range: -55 to +125°C
  • insulation resistance: 10000MOhm
  • dielectric withstanding voltage: 200VRMS
  • housing: SIP/SIL
  • low profile is compatible with DIPs
  • marking on contrasting background for permanent identification
> More
