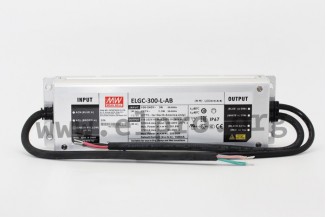

Mean Well LED driver series ELGC-300

LED drivers in a metal housing (IP67) with a constant power, a 6kV surge immunity level, a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) and a built-in potentiometer for adjusting the current limitation. These SELV compliant (ELGC-300-M_/ELGC-300-H_) devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and are suitable for LED lighting applications. They have a built-in active PFC function and comply with EN61347-2-13, EN61347-1, EN61547, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: ELGC-300-L-AB, ELGC-300-M-AB and ELGC-300-H-AB.

single output
output: 301,6W
input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
maximal input inrush current: 45A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +85°C
dimensions: 246x77x39,5mm
weight: 1450g
