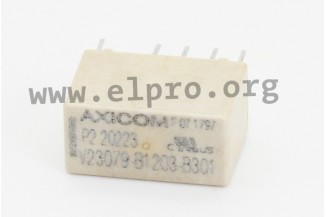

TE Connectivity PCB relay series P2 V23079

Bistable standard telecom relays with two coils, the contact form DPDT (2 form C) and the Au plated contact material AgNi. These relays have a maximal switching current of 2A and a high sensitivity for a ...

TE Connectivity PCB relay series P2 V23079

Bistable standard telecom relays with two coils, the contact form DPDT (2 form C) and the Au plated contact material AgNi. These relays have a maximal switching current of 2A and a high sensitivity for a low power consumption of 140mW. Furthermore, they are in compliance with the relay protection class RTIII (IEC 61810) and are immersion cleanable. We offer the types V23079-B1201-B301, V23079-B1203-B301 and V23079-B1205-B301 of this series.

  • contact: DPDT
  • contact material: AgNi, Au plated
  • rated current: 2A
  • maximal switching current: 2A
  • max switching voltage: 220V DC / 250V AC
  • switching power: 60W / 62,5VA
  • terminal type: PCB-THT
  • testing voltage coil/contact: 1500Vrms
  • testing voltage contact/contact: 1000Vrms
  • testing voltage open contacts: 1000Vrms
  • minimal mechanical lifetime: 100x106 operations
  • minimal electrical lifetime 12V /100mA: 5x107 operations
  • minimal electrical lifetime 30V / 2000mA: 2x105 operations
  • minimal operating temperature: -40 to +85°C
  • weight (approximately): 2,8g
