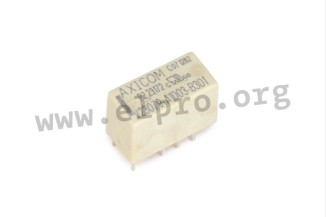

TE Connectivity PCB relay series P2 V23079

Standard telecom relays with the contact form DPDT (2 form C) and the contact material AgNi (Au plated). These relays have a maximal switching current of 2A and a high sensitivity for a low power consumpt...

TE Connectivity PCB relay series P2 V23079

Standard telecom relays with the contact form DPDT (2 form C) and the contact material AgNi (Au plated). These relays have a maximal switching current of 2A and a high sensitivity for a low power consumption of 140mW or 200mW (overmolded types). Furthermore, they are in compliance with the relay protection class RTIII (IEC 61810). We offer the types V23079-A1001-B301, V23079-A1003-B301, V23079-A1005-B301, V23079-A2001-B301, V23079-A2002-B301 and V23079-A2003-B301 of this series.

  • contact: DPDT
  • contact material: AgNi, Au plated
  • rated current: 2A
  • maximal switching current: 2A
  • max switching voltage: 220V DC / 250V AC
  • switching power: 60W / 62,5VA
  • testing voltage coil/contact: 1500Vrms
  • testing voltage contact/contact: 1000Vrms
  • testing voltage open contacts: 1000Vrms
  • minimal mechanical lifetime: 100x106 operations
  • minimal electrical lifetime 12V /100mA: 5x107 operations
  • minimal electrical lifetime 30V / 2000mA: 2x105 operations
  • minimal operating temperature: -40 to +85°C
  • weight (approximately): 2,8g
