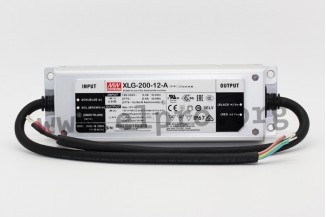

Mean Well LED driver series XLG-200

LED drivers in a metal housing (IP67) with 200W, a universal input and a low no load power consumption (<0,5W). These SELV compliant devices (except for XLG-200-L_) have a built-in potentiometer for adjusting the current limitation as well as a built-in active PFC function and are protected against overcurrent, overvoltage, overtemperature, short-circuit as well as overload (auto recovery). They are suitable for LED lighting applications and comply with EN55015, EN61000-3-2 Class C, Surge Immunity Level 6kV, EN61000-3-3, EN61547, EN61347-1, EN61347-2-13 as well as EN62384.

We offer the types XLG-200-12-A and XLG-200-24-A with a constant voltage and a constant current, the LED drivers XLG-200-L-A and XLG-200-H-A with a constant power and the versions XLG-200-L-AB and XLG-200-H-AB with a constant power and a built-in 3 in 1 dimming function (10V PWM, 0 to 10V DC and potentiometer).

single output
output: 192 to 200W
input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
maximal input inrush current: 65A
no-load power: <0,5W
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 1500V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +90°C
dimensions: 199x63,5x35,5mm
weight: 850g
