Mean Well LED driver series LCM-60KN

LED drivers in a plastic housing with 60W, a constant current, a low standby power consumption (<0,5W), a KNX interface and a KNX push button. These SELV compliant devices have a built-in active PFC function...

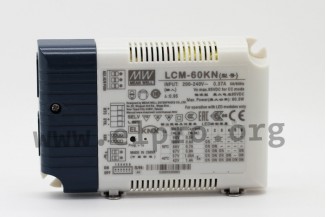

Mean Well LED driver series LCM-60KN

LED drivers in a plastic housing with 60W, a constant current, a low standby power consumption (<0,5W), a KNX interface and a KNX push button. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They have a DIL switch for selecting the constant current, are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN61000-3-2 class C, EN55015 as well as EN61547. We offer the type LCM-60KN of this Mean Well series.

  • output: 60,3W
  • constant current selectable by DIL switch:
    2 to 90V (500mA)
    2 to 90V (600mA)
    2 to 86V (700mA)
    2 to 67V (900mA)
    2 to 57V (1050mA)
    2 to 42V (1400mA)
  • input voltage: 180 to 295V AC (47 to 63Hz), 220 to 417V DC
  • maximal input inrush current: 20A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +90°C
  • weight: 240g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    LCM-60KN, Mean Well LED drivers, 60W, KNX standard, LCM-60KN series
    45,59 €
    113396 LCM-60KN LCM-60KN
    45,59 €
    Quantity Unit price
    50 + 44,09 €

    More
    Stock: 118
  • Mean Well
    LCM-60KN, Mean Well LED drivers, 60W, KNX standard, LCM-60KN series
    46,59 €
    246585 LCM-60KN-AUX LCM-60KN-AUX
    46,59 €

    More
    Stock: 0
Showing 1 - 2 of 2 products
