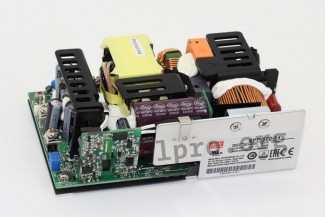

Mean Well power supply series EPP-500

Switching power supplies in a compact 5"x3" housing (open frame) with 320W (500W with 25cfm forced air), a built-in auxiliary power (12V/0,5A), an LED indicator for power on, a low no-load power (<0,5W), a universal input and a pin strip connection for nylon crimp terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for an operating altitude of up to 5000m and comply with UL/EN62368-1, EN60335-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPP-500-12, EPP-500-15, EPP-500-18, EPP-500-24, EPP-500-27, EPP-500-36, EPP-500-48 and EPP-500-54.

single output
output: 499,2 to 500,4W
input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
maximal input inrush current: 80A
leakage current: <0,75mA
overload protection: 105 to 135%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -30 to +70°C
weight: 460g
