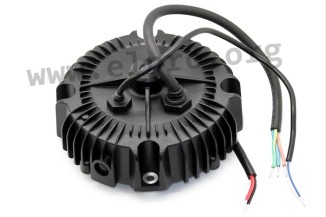

Mean Well LED driver series XBG-160

LED drivers in a round metal housing (IP67) with a constant power, a 3 in 1 dimming function (0 to 10V DC, PWM, 160kOhm potentiometer), an AC input with a cable and 160W. These SELV compliant devices are protect...

Mean Well LED driver series XBG-160

LED drivers in a round metal housing (IP67) with a constant power, a 3 in 1 dimming function (0 to 10V DC, PWM, 160kOhm potentiometer), an AC input with a cable and 160W. These SELV compliant devices are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. They are suitable for LED lighting applications and have a built-in potentiometer for adjusting the power as well as a built-in active PFC function. We offer the following types of this Mean Well series: XBG-160-AB and XBG-160-AB-C.

  • single output
  • output: 159,9W
  • input voltage: 90 to 305V AC (47 to 63Hz)
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: Ø151,5x60mm
  • weight: 1250g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    XBG-160-AB, Mean Well LED drivers, 160W, IP67, constant power, dimmable, circular housing, XBG-160 series
    39,49 €
    113394 XBG-160-AB XBG-160-AB
    39,49 €
    Quantity Unit price
    50 + 38,59 €

    More
    Stock: 12
  • Mean Well
    XBG-160-AB-C, Mean Well LED drivers, 160W, IP67, constant power, dimmable, circular housing, XBG-160 series
    34,29 €
    244861 XBG-160-AB-C XBG-160-AB-C
    34,29 €

    More
    Stock: 0
Showing 1 - 2 of 2 products
