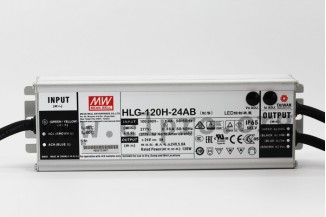

Mean Well LED driver series HLG-120H_AB

LED drivers in a metal housing (IP65) with a constant voltage (CC/CV mixed mode), a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), 120W and a wide input range. These SELV compliant device...

Mean Well LED driver series HLG-120H_AB

LED drivers in a metal housing (IP65) with a constant voltage (CC/CV mixed mode), a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), 120W and a wide input range. These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage, are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 Klasse C, EN61000-3-3 as well as EN61547. They have a built-in active PFC function, a built-in potentiometer for adjusting the output voltage as well as the current limitation as well as a constant current (CC/CV mixed mode). We offer the following types of this Mean Well series: HLG-120H-12AB, HLG-120H-15AB, HLG-120H-20AB, HLG-120H-24AB, HLG-120H-30AB, HLG-120H-36AB, HLG-120H-42AB, HLG-120H-48AB and HLG-120H-54AB.

  • single output
  • output: 120 to 124,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • weight: 1120g
