Mean Well LED driver series HLG-600H

LED drivers in a metal case (IP65) with a built-in active PFC function, 600W and a constant voltage as well as a constant current (dual mode). These devices are protected against overtemperature, overvoltage, o...

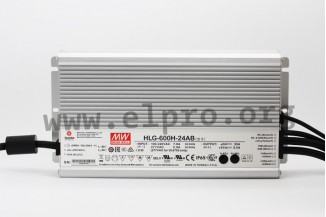

Mean Well LED driver series HLG-600H

LED drivers in a metal case (IP65) with a built-in active PFC function, 600W and a constant voltage as well as a constant current (dual mode). These devices are protected against overtemperature, overvoltage, overcurrent, short-circuit as well as overload through constant current limiting (auto recovery) and comply with the EMC standards EN 55015, EN 61000-3-2 class C, EN 61000-3-3 and EN 61547 as well to the safety standards EN 61347-1 and EN 61347-2-13. The output voltage and current are adjustable through a built-in potentiometer and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-600H-12AB, HLG-600H-15AB, HLG-600H-20AB, HLG-600H-24AB, HLG-600H-30AB, HLG-600H-36AB, HLG-600H-42AB, HLG-600H-48AB and HLG-600H-54AB.

  • single output
  • output: 480 to 604,8W
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 280x144x48,5mm
  • weight: 3900g
> More
Data Sheet
