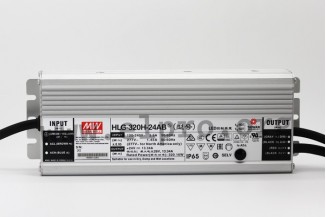

Mean Well LED driver series HLG-320H

LED drivers in a metal housing (IP65) with a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), protection against overload (auto recovery), overtemperature, short circuit as well as overvoltage...

Mean Well LED driver series HLG-320H

LED drivers in a metal housing (IP65) with a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), protection against overload (auto recovery), overtemperature, short circuit as well as overvoltage, a constant current and a built-in potentiometer for adjusting the current limitation. These devices comply with EN55015, EN61547, EN61000-3-3, EN61000-3-2 Class C, EN61347-2-13 as well as EN61347-1 and are suitable for LED lighting applications. They have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. We offer the following types of this Mean Well series: HLG-320H-12AB, HLG-320H-15AB, HLG-320H-20AB, HLG-320H-24AB, HLG-320H-30AB, HLG-320H-36AB, HLG-320H-42AB, HLG-320H-48AB and HLG-320H-54AB.

  • single output
  • output: 264 to 321,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 252x90x43,8mm
  • weight: 1880g
> More
Data Sheet
