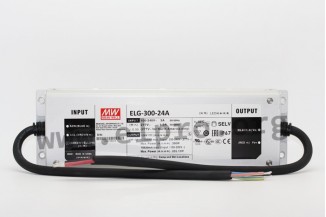

Mean Well LED driver series ELG-300

LED drivers in a metal housing (IP67) with a 6kV surge immunity level, a constant current, 300W and a built-in potentiometer for adjusting the current limitation. These SELV compliant devices are protected agains...

Mean Well LED driver series ELG-300

LED drivers in a metal housing (IP67) with a 6kV surge immunity level, a constant current, 300W and a built-in potentiometer for adjusting the current limitation. These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage, are suitable for LED lighting applications and are not dimmable. They comply with EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61347-1 as well as EN61347-2-13 and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-300-12A and ELG-300-24A.

  • single output
  • output: 264 to 300W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 45A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 246x77x39,5mm
  • weight: 1450g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    ELG-300-12A, Mean Well LED driver, CC and CV mixed mode, 300 watts, IP67, ELG-300 series
    65,99 €
    123293 ELG-300-12A ELG-300-12A
    65,99 €
    Quantity Unit price
    50 + 63,79 €

    More
    Stock: 11
  • Mean Well
    ELG-300-24A
    58,59 €
    113253 ELG-300-24A ELG-300-24A
    58,59 €
    Quantity Unit price
    50 + 57,09 €

    More
    Stock: 314
