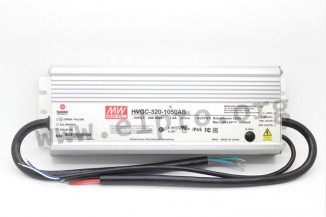

Mean Well LED driver series HVGC-320

LED drivers in a metal housing (IP65) with a constant current, a built-in potentiometer for adjusting the current limitation and a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer). These devices comply with EN61347-2-13, EN61347-1, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as EN55015 and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HVGC-320-700AB, HVGC-320-1050AB, HVGC-320-1400AB, HVGC-320-1750AB, HVGC-320-2100AB, HVGC-320-2800AB and HVGC-320-3500AB.

single output
output: 300 to 320W
input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
maximal input inrush current: 50A/480V
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +90°C
dimensions: 262x90x43,8mm
weight: 2000g
