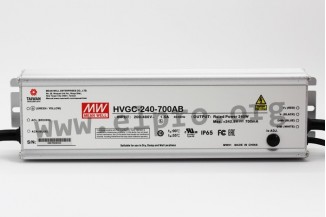

Mean Well LED driver series HVGC-240

LED drivers in a metal housing (IP65) with a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), a built-in potentiometer for adjusting the current limitation and 240W. These devices comply with EN55015, EN61547, EN61000-3-3, EN61000-3-2 class C, EN61347-1 as well as EN61347-2-13 and are suitable for LED lighting applications. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and have a built-in active PFC function. We offer the following types of this Mean Well series: HVGC-240-700AB, HVGC-240-1050AB, HVGC-240-1400AB, HVGC-240-1750AB, HVGC-240-2100AB, HVGC-240-2800AB and HVGC-240-3500AB.

single output
output: 240 to 240,1W
input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
maximal input inrush current: 50A/480V
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +90°C
dimensions: 254,2x68x38,8mm
weight: 1350g
