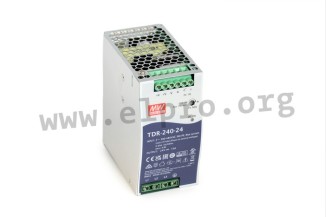

Mean Well DIN rail power supply series TDR-240

Switching power supplies in a slim housing (63mm width) with 240W, screw terminals (touch guard) and a built-in DC OK relay contact. These devices have a three phase input and are protected against ov...

Mean Well DIN rail power supply series TDR-240

Switching power supplies in a slim housing (63mm width) with 240W, screw terminals (touch guard) and a built-in DC OK relay contact. These devices have a three phase input and are protected against overload, overtemperature, overvoltage as well as short circuit. They are suitable for DIN rail mounting and comply with EN61000-6-2, EN50082-2, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: TDR-240-24 and TDR-240-48.

  • single output
  • output: 240W
  • input voltage: 340 to 550V AC (47 to 63Hz)
  • maximal input inrush current: 50A
  • leakage current: <2mA
  • overload protection: 105 to 130%
  • withstand voltage I/P-O/P: 4870V AC
  • withstand voltage I/P-FG: 2400V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 1000g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    TDR-240-24, Mean Well DIN rail switching power supplies, 240W, 3-phase input, TDR-240 series
    61,59 €
    112723 TDR-240-24 TDR-240-24
    61,59 €
    Quantity Unit price
    50 + 60,09 €

    More
    Stock: 770
  • Mean Well
    TDR-240-48, Mean Well DIN rail switching power supplies, 240W, 3-phase input, TDR-240 series
    68,59 €
    112724 TDR-240-48 TDR-240-48
    68,59 €
    Quantity Unit price
    50 + 67,19 €

    More
    Stock: 77
Showing 1 - 2 of 2 products
