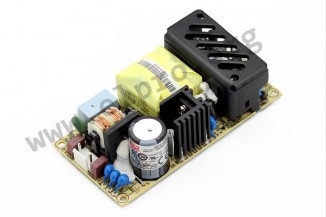

Mean Well power supply series RPT-60

Switching power supplies in a compact 4"x2" housing (open frame) with 60W, a universal input and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications and comply with EN60601-1, UL/EN62368-1, EN61000-3-2 as well as EN61000-3-3. They have a fanless design and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: RPT-60A, RPT-60B, RPT-60C, RPT-60D and RPT-6003.

triple output
output: 39,9 to 50W
input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
maximal input inrush current: 60A
leakage current: <150µA (earth) / <100µA (touch)
overload protection: 115 to 150%
withstand voltage I/P-O/P: 4000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -20 to +65°C
weight: 150g
