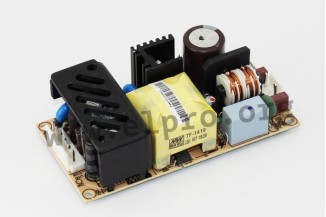

Mean Well power supply series RPD-60

Switching power supplies in a compact 4"x2" housing (open frame) with 60W, a universal input and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications ...

Mean Well power supply series RPD-60

Switching power supplies in a compact 4"x2" housing (open frame) with 60W, a universal input and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with UL/EN62368-1, EN60601-1, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPD-60A and RPD-60B.

  • dual output
  • output: 49 to 53,5W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <150µA (earth) / <100µA (touch)
  • overload protection: 115 to 150%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -20 to +65°C
  • weight: 150g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    RPD-60A, MeanWell, output 60 watts, dual output, medical open frame
    14,59 €
    111852 RPD-60A RPD-60A
    14,59 €
    Quantity Unit price
    50 + 13,59 €

    More
    Stock: 0
  • Mean Well
    RPD-60B, Mean Well, output 60 watts, dual output, medical open frame
    14,59 €
    111853 RPD-60B RPD-60B
    14,59 €
    Quantity Unit price
    50 + 13,59 €

    More
    Stock: 42
Showing 1 - 2 of 2 products
