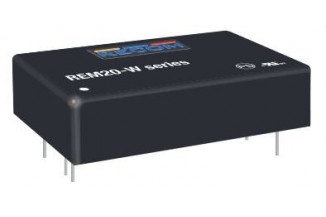

Recom DC/DC converter series REM20-W

DC/DC converters by Recom with a working voltage isolation (2MOPP, 250V AC) and 2µA patient leakage current. These devices in a 1,6''x1'' housing have a standard input voltage ratio of 4:1, an isolation of 5kV ...

Recom DC/DC converter series REM20-W

DC/DC converters by Recom with a working voltage isolation (2MOPP, 250V AC) and 2µA patient leakage current. These devices in a 1,6''x1'' housing have a standard input voltage ratio of 4:1, an isolation of 5kV AC as well as an efficiency of up to 89,5%. They are suitable for medical applications and for direct PCB mounting. We offer the types REM20-2405SW, REM20-2412SW, REM20-4805SW, REM20-4812SW with a single output as well as the type REM20-4815DW with a dual output.

  • single & dual output
  • output: 20W
  • maximal voltage accuracy (load 100%): ±1%
  • temperature range: -40 to +105°C
  • weight: 24g
> More
Data Sheet
