Schützinger CAT I adapters

CAT I adapters for the adaptation of Ø4mm systems to Ø4mm safety systems. These adapters are designed for a rated current of 32A with a rated voltage of 33V AC or 70V DC. We offer these adapters in black (A40-40SNI/SW), ...

Schützinger CAT I adapters

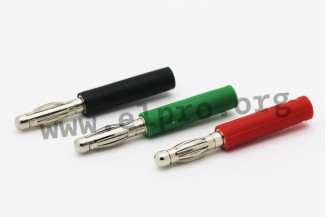

CAT I adapters for the adaptation of Ø4mm systems to Ø4mm safety systems. These adapters are designed for a rated current of 32A with a rated voltage of 33V AC or 70V DC. We offer these adapters in black (A40-40SNI/SW), red (A40-40SNI/RT), blue (A40-40SNI/BL), yellow (A40-40SNI/GE) and green (A40-40SNI/GN).

  • contacts: nickel plated
  • insulators: PA 6.6 (Polyamid)
  • terminals: plug-in socket
  • maximal transition resistance: 6mOhm
  • operating temperature range: -25°C to +80°C
> More
Data Sheet
