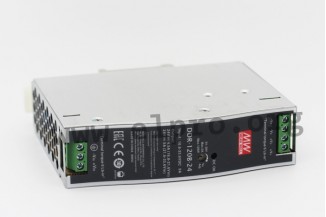

Mean Well DC/DC converter series DDR-120

DC/DC converters in a DIN rail housing (TS-35/7.5 or 15) with 120W, an input voltage ratio of 2:1, a small width (32mm) and an adjustable DC output. These devices have a fanless design and are protected against overload, input voltage reversal, overvoltage as well as short circuit. They have a peak load capability of 150% and comply with EN55032 class B, IEC62368-1 as well as UL62368-1. We offer the following types of this Mean Well series: DDR-120A-12, DDR-120A-24, DDR-120A-48, DDR-120B-12, DDR-120B-24, DDR-120B-48, DDR-120C-12, DDR-120C-24, DDR-120C-48, DDR-120D-12, DDR-120D-24 and DDR-120D-48.

single output
output: 120W
overload protection: 105 to 135%
withstand voltage I/P-O/P: 4000V DC
withstand voltage I/P-FG: 2500V DC
withstand voltage O/P-FG: 2500V DC
operating temperature: -40 to +70°C
weight: 510g

> More

Data Sheet
