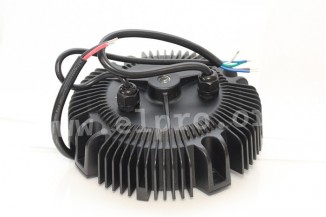

Mean Well LED driver series HBG-240

LED drivers in a metal housing (IP67, circular shape) with a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), a constant power, 240W and a constant current. These SELV compliant devices are suitable for LED lighting applications and comply with EN61347-2-13, EN61347-1, EN61547, EN55015, EN61000-3-2 class C as well as EN61000-3-3. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-240-24B, HBG-240-36B, HBG-240-48B and HBG-240-60B.

single output
output: 240W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 75A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -40 to +80°C
dimensions: Ø191,5x69mm
weight: 2100g
