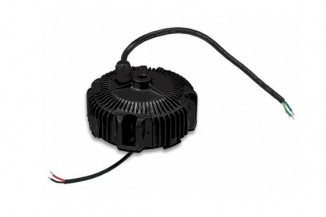

Mean Well LED driver series HBG-200

LED drivers in an aluminium housing (circular shape, IP67) with a 3 in 1 dimming function (constant current 0 to 10V DC, PWM, potentiometer), 200W and a universal input. These devices have a built-in active PFC function and are suitable for LED lighting applications. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3 and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: HBG-200-36B and HBG-200-60B.

single output
output: 198W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 85A
overcurrent protection: 95 to 108%
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -40 to +85°C
dimensions: Ø151,68x66,5mm
weight: 1530g
