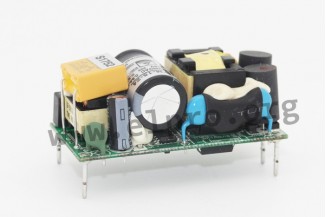

Mean Well power supply series MFM-15

Open frame type switching power supplies with 15W, insulation class II, a low no-load power and a universal input. These devices are suitable for medical technology applications and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with IEC/EN60601-1, IEC/EN60335-1 as well as EN55011 class B. We offer the following types of this Mean Well series: MFM-15-3.3, MFM-15-5, MFM-15-12, MFM-15-15 and MFM-15-24.

single output
output: 11,6 to 15,1W
input voltage: 80 to 264V AC (47 to 440Hz)
maximal input inrush current: 45A
no-load power: <0,075W
overload protection: 110 to 150%
withstand voltage I/P-O/P: 4000V AC
operating temperature: -35 to +85°C
weight: 28g
