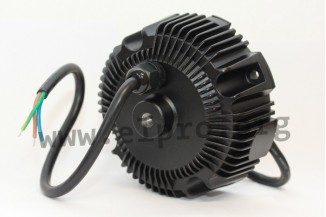

Mean Well LED driver series HBG-100

LED drivers in a round metal housing (IP67) with a universal input, a constant current, 100W and a DALI interface. These SELV compliant devices are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 Class C, EN61000-3-3 as well as EN61547. They are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-100-24DA, HBG-100-36DA, HBG-100-48DA and HBG-100-60DA.

single output
output: 96 to 97,2W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 60A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -40 to +85°C
dimensions: Ø130x66,5mm
weight: 1180g

Matching heatsinks

> More

Data Sheet
