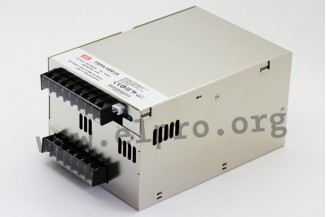

Mean Well power supply series PSPA-1000

Switching power supplies in an enclosed metal housing with 1000W, a parallel function, a built-in remote sense function, screw terminals, a built-in remote ON/OFF control, a fan and a universal input. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They are suitable for an active current sharing of up to 4000W (3+1 units) and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PSPA-1000-12, PSPA-1000-15, PSPA-1000-24 and PSPA-1000-48.

single output
output: 960 to 1008W
input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
maximal input inrush current: 40A
leakage current: <0,5mA
overload protection: 105 to 135%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -20 to +70°C
weight: 1930g
